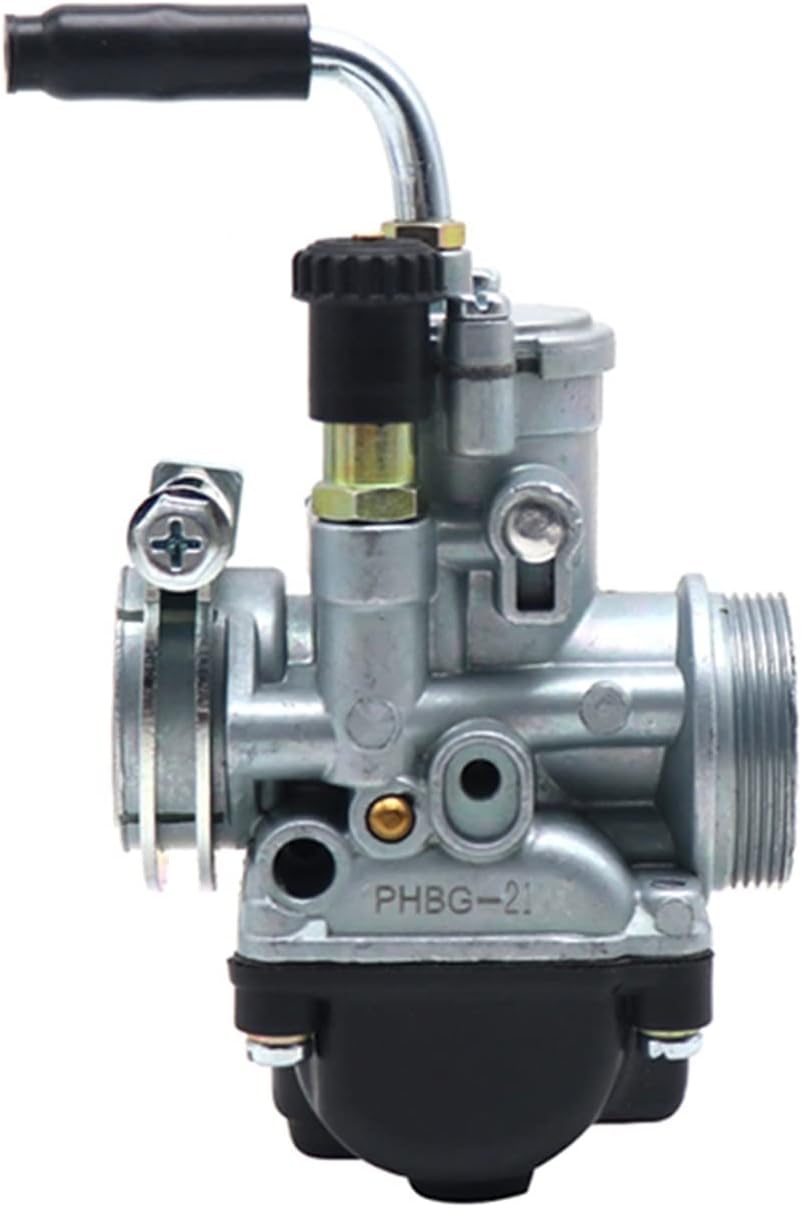

Carburetors Dellorto PHBG 17.5mm AS Carburetor

4 Stroke 50cc-80cc Engine 4T Dellorto PHBG Carburetor For Scooter Moped(21mm AS)

Product Description

PHBG 17.5AD 4T:
M32 x 1.25 threaded air intake connection.
Clamp type engine connection to suit 24-26mm stub.
Cable type choke mechanism fitted
Standard jetting:
30 Slide
W6 needle
82 Main jet
262AN atomiser
55 Idle jet
55 Choke jet
9450.2 Float 5.0 grams

PHBG 19.5AD 4T:
M32 x 1.25 threaded air intake connection.
Clamp type engine connection to suit 24-26mm stub.
Cable type choke mechanism fitted
Standard jetting:
30 Slide
W6 needle
88 Main jet
262AN atomiser
55 Idle jet
55 Choke jet
9450.2 Float 5.0 grams
PHBG 17.5AS 4T:
M32 x 1.25 threaded air intake connection.
Clamp type engine connection to suit 24-26mm stub.
Lift and twist type choke mechanism fitted
Standard jetting:
30 Slide
W6 needle
82 Main jet
262AN atomiser
55 Idle jet
55 Choke jet
9450.2 Float 5.0 grams
PHBG 19.5AS 4T:
M32 x 1.25 threaded air intake connection.
Clamp type engine connection to suit 24-26mm stub.
Lift and twist type choke mechanism fitted
Standard jetting:
30 Slide
W6 needle
88 Main jet
262AN atomiser
55 Idle jet
55 Choke jet
9450.2 Float 5.0 grams
